[Industry Insights] Decoding the Mining Electric Locomotive: The "Steel Behemoth" of Underground Haulage and Its Core Technologies

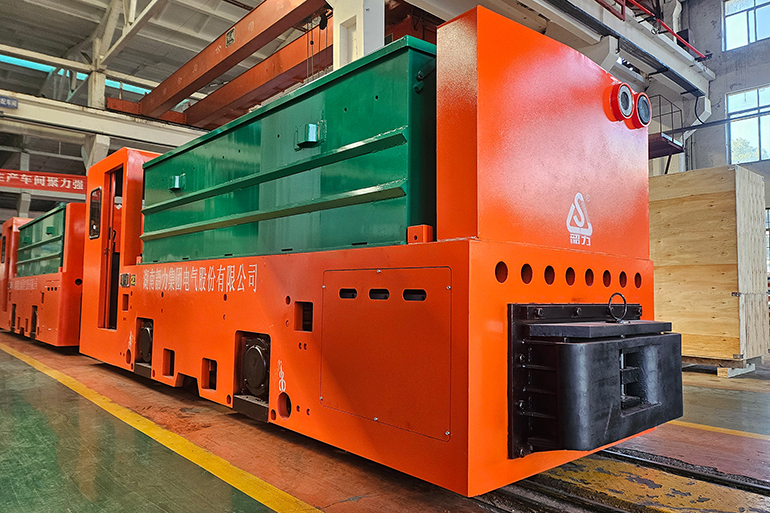

As the backbone of both underground haulage drifts and long-distance surface transit, the mining electric locomotive plays the critical role of the "lead engine" in mine railway systems. Delivering formidable traction, these robust machines propel trains of mine cars and man-riding carriages efficiently along the tracks, seamlessly executing the heavy-duty transport of coal, gangue, materials, equipment, and personnel.

Today, we will break down the core architecture of this "underground workhorse," unveiling the mechanical and electrical engineering marvels behind its highly efficient operation.

The Perfect Integration of Mechanical and Electrical Systems

The architecture of a mining electric locomotive is highly precise, primarily consisting of two core systems: the mechanical and the electrical. These two complement each other to ensure stable operation in complex and harsh mining environments:

Mechanical System: Forms the robust skeleton of the locomotive, encompassing the main frame (chassis), wheelsets, journal boxes (axle boxes), spring suspension rigging, braking systems, sanding devices, and buffer/coupling mechanisms.

Electrical System: Provides continuous, reliable power. It covers DC series motors, controllers, resistor banks, pantographs (for trolley locomotives), or explosion-proof connectors and battery banks (for battery locomotives).

Detailed Breakdown of Core Mechanical Components

Main Frame (The Primary Chassis): As the foundational structure, the main frame is precision-welded from heavy-duty steel plates. With the exception of the wheelsets and journal boxes, all mechanical and electrical equipment is mounted here. To withstand the inevitable impacts and collisions during rigorous operation, the frame is engineered with increased plate thickness and reinforced designs to guarantee extremely high rigidity and structural integrity.

Wheelsets & Journal Boxes (Transmission & Load-Bearing): The wheelset forms the driving foundation, consisting of two wheels pressed onto an axle. Wheels are generally categorized into two types: solid monobloc wheels and shrink-fit steel wheel tire and center structures (the latter drastically reduces maintenance costs, as only the outer steel wheel tire needs replacing when worn to its limit). Motor power is stepped down through transmission gears to directly drive the geared wheelset. The journal box (axle box) serves as the vital pivot connecting the frame to the wheelset. When navigating uneven tracks, the relative movement between the wheelset and the frame is absorbed between the journal box guides and the frame pedestals.

Spring Suspension System (Shock Absorption): Composed of springs (e.g., leaf springs), connecting rods, and equalizer beams. The main frame rests on the journal boxes via this suspension rigging. When encountering uneven or partially sunken tracks, the equalizer beam effectively distributes and balances the load across each wheel, playing a crucial role in shock absorption and derailment prevention.

Power Transmission and Safety Assurance Systems

Gear Assembly: Power transmission relies on heavy-duty gear mechanisms, currently dominated by single-stage open gear transmissions and two-stage enclosed gear reducers. Compared to open drives, enclosed gear reducers boast significant advantages in transmission efficiency and gear lifespan, making them the preferred choice for modern, high-efficiency mining locomotives.

Braking System (Dual Safety Defense):

Mechanical Braking: Predominantly utilizes brake shoe block mechanisms (available in manual, pneumatic, and hydraulic operations). Taking manual braking as an example, leverage firmly presses the brake shoe against the wheel flange, utilizing friction to generate immense braking torque.

Dynamic/Electrical Braking: A form of rheostatic/dynamic braking utilized by the traction motors. It requires no additional mechanical wear parts; the operator simply alters the electrical circuit via the controller to achieve smooth and controlled deceleration.

Auxiliary Safety & Coupling Devices:

Sanding System: When tracks are damp/slippery or emergency braking is required, this device dispenses dry, fine sand (particle size ≤ 1mm) directly onto the rails ahead of the wheel flange. This instantly multiplies the wheel-rail friction coefficient to prevent wheel slip.

Buffers and Couplers: Both ends of the chassis feature spring-loaded buffer blocks to drastically mitigate docking impacts. To accommodate towing equipment of varying heights, the coupler employs a multi-level interface design. In recent years, advanced mining locomotives have been phasing out manual coupling in favor of automatic couplers, further elevating marshalling safety and operational efficiency.

Conclusion: Through precision-engineered, durable mechanical structures and highly efficient electrical controls, mining electric locomotives perfectly adapt to the grueling, high-intensity haulage demands of mining zones. With continuous technological iterations—from the widespread adoption of enclosed gear reducers to the integration of automatic couplers—these heavy-duty transport arteries are steadily marching toward a safer, more efficient, and intelligent future.
